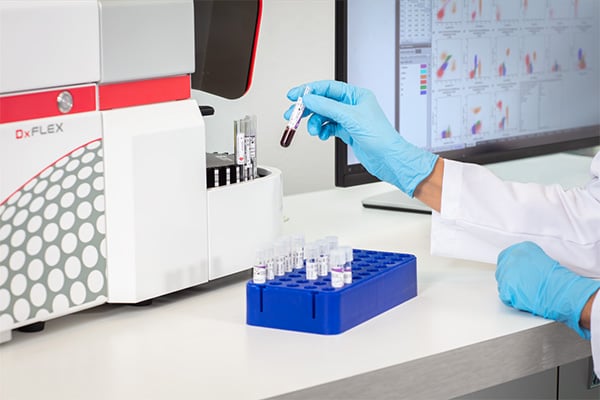

DxFLEX Flow Cytometer
DxFLEX is a new clinical flow cytometry platform derived from the successful CytoFLEX. The advanced sensitivity and intuitive software DxFLEX makes flow cytometry routine for both novice and expert flow cytometry technicians and promotes standardization. Functionality in the autoloader facilitates accurate results and sample tracking.
- Wavelength Division Multiplexing (WDM) detection modules offer superior signal resolution
- Simplified system settings, data acquisition & result export functions
- Different instrument configurations available with up to 3-laser and 13-color detection
- Optional DxFLEX Autoloader decreases the hands on time with multiple tube loading and plate loading*
- Compact design for use in biological safety cabinets
DxFLEX is an IVD instrument that is available only in countries where the regulatory approval is obtained from the local regulatory agencies. Please check with your local sales representatives before placing your orders.
* Plate adapter: Regulatory status differs by region, please consult your local sales representative.
DxFLEX Flow Cytometer Features
A compact design, intuitive software, up to 13-color detection and an enhanced optical path for increased sensitivity ensure accurate results and makes flow cytometry data collection easy even for novice users.
Flow System
- Inlet system for 12×75 mm & micro-scale sample tube loading via single tube loader(up to 30,000 events per sec)
- DxFLEX Autoloader is compatible with 32-tube carousel and 96-well plates*
- Preset cleaning & maintenance programs with automatic maintenance reminders for easy maintenance
- Three preset sample rates (high; medium; low) plus user-controlled option
* Plate loading is not available as CE-IVD
Intelligent Software
- Simple intuitive interface & automated parameter optimization for improved work efficiency
- Graphical operating tools for adjusting threshold, gain, compensation & more directly on results graph
- Convenient compensation library stores compensation values of fluorescent dyes in multicolor experiments for future use
- English/ Chinese bilingual interface
Standardized QC
- Automated instrument quality control procedures & reporting (laser delay/power, channel gain, mean fluorescence intensity, rCV) for more reliable stable results
- Standardization procedure can be used to monitor Median Fluorescent Intensity (MFI) and track gain changes for assays.
Optical System
- The DxFLEX flow cytometer uses Avalanche Photodiode detectors instead of PMTs. The low electronic noise contributes to the resolution capabilities of the instrument.
- Wavelength Division Multiplexer uses bandpass filters to deconstruct the light and efficiently deliver to the detectors by fiber optics.
Explore DxFLEX Models
Related Parts for DxFLEX
B73613, DxFLEX Sheath Fluid, 10 L
A nonionic, non-fluorescent, and azide-free sheath fluid for use on DxFLEX flow cytometers.
A64669, FlowClean Cleaning Agent, 500 mL
For use as a cleaning agent for flow cytometer components that come in contact with blood samples.

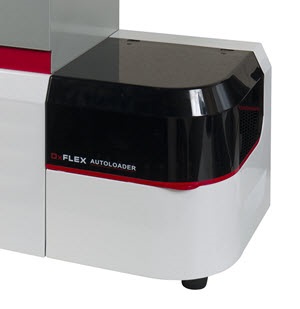

DxFLEX Autoloader Module
The optional autoloader module can be added to the DxFLEX flow cytometer to decrease hands on time during acquisition. The module accepts a standard 32-tube carousel, or with an additional optional adapter can support sample loading from 96-well plates*. When using the carousel, an integrated barcode reader can be used for extra verification of sample identity.
*Plate adapter: Regulatory status differs by region. Please contact your local sales representative.
Tube Carousel, 32 positions
32 position carousel tube rack, compatible with DxFLEX, Navios, Navios EX, Cytomics FC 500, Coulter PrepPlus 2, and TQ-Prep.

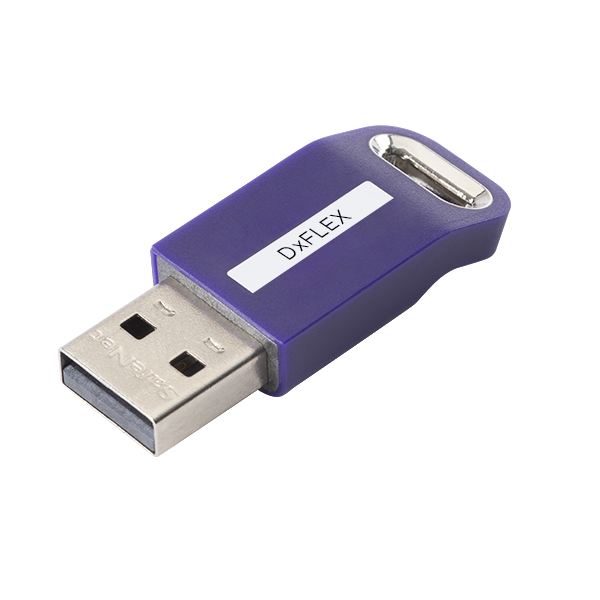

DxFLEX Upgrade from B5-R0-V0 to B5-R3-V5
Activation key to upgrade the DxFLEX B5-R0-V0 flow cytometer with additional parameters. Upon installation the instrument will have 3 active lasers (488 nm, 638 nm, 405 nm) and 13 channels for fluorescence detection in the B5-R3-V5 configuration.
