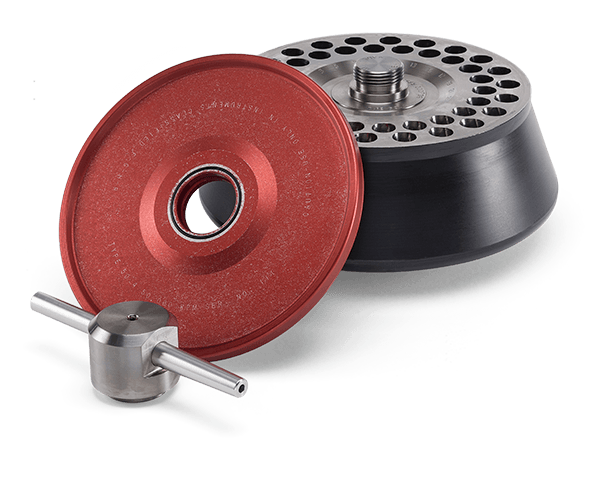

Type 50.4 Ti Fixed-Angle Titanium Rotor
Product No:347299
Type 50.4 Ti Rotor Assembly. For use in instruments classified: H R S; Part Number Description 870138; 2 O-ring for Rotor Lid 854519; 2 O-ring for Rotor Handle 330336; 1 extra Overspeed Disk, 50,000 rpm.
€24,470.00 List Price - €24,470.00
Resources + Tools
Spezifikationen
| Platform | Floor Prep |
| Rotor Type | Fixed-Angle (Ultracentrifugation) |
| Angle | 20 |
| Maximum RPM | 50,000 rpm |
| Max g-Force | 312,000.00 |
| k-Factor | 33 (outer row), 39 (inner row) |
| Number of Tubes | 44x6 mL / 13x64 mm(44x6 mL / 1x3 in) |

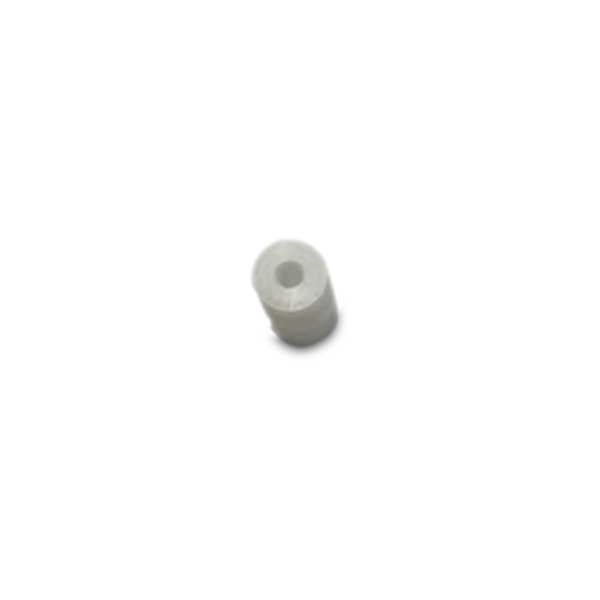

| Caps and Spacers | 344389 │ 345827 │ 361676 |
| Nominal Capacity | 286 mL |

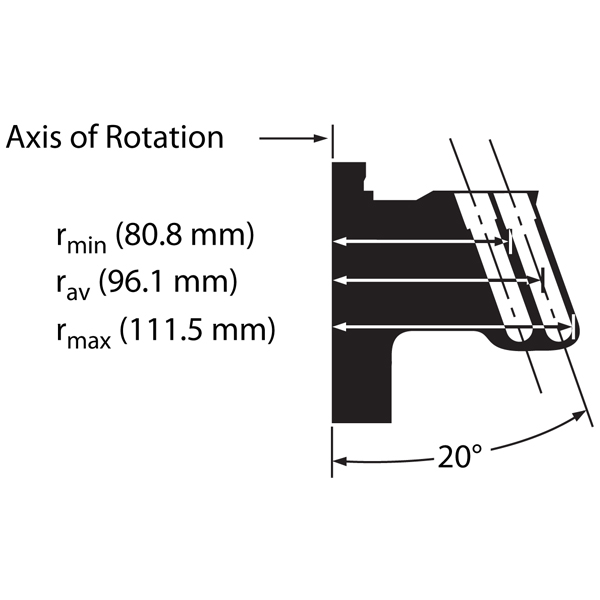

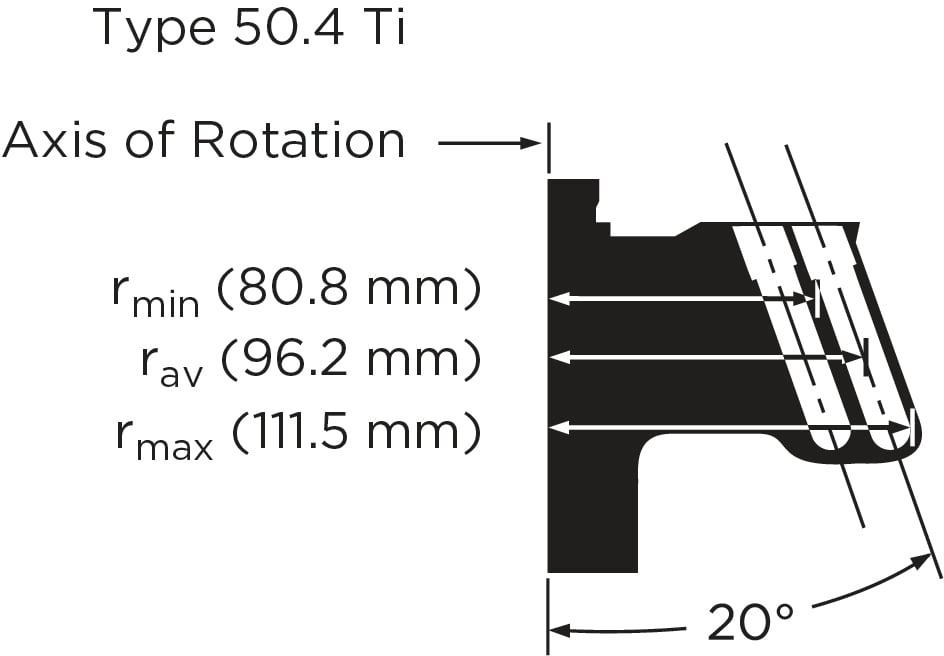

| rMAX | Outer row: 111.5 mm Inner row: 96.2 mm |
| rMIN | Outer row: 80.8mm │ Inner row: 65.7mm |
| BioSafe | Bio-Enhanced |
| Materials | Titanium |
| Package Quantity | 1 |
Related Products or Parts

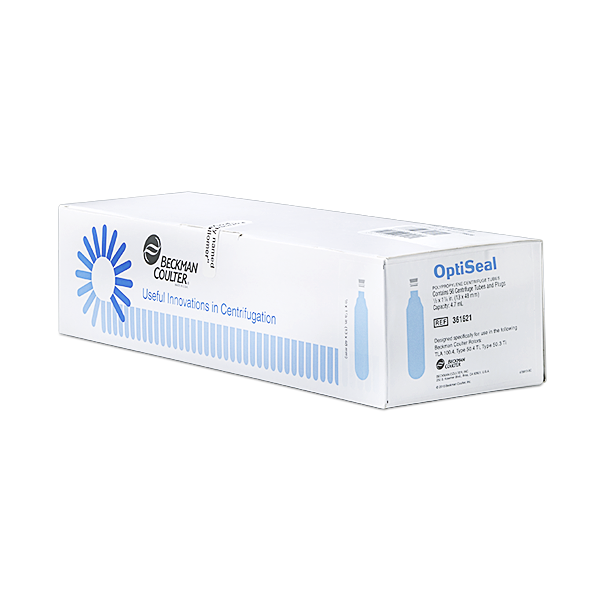

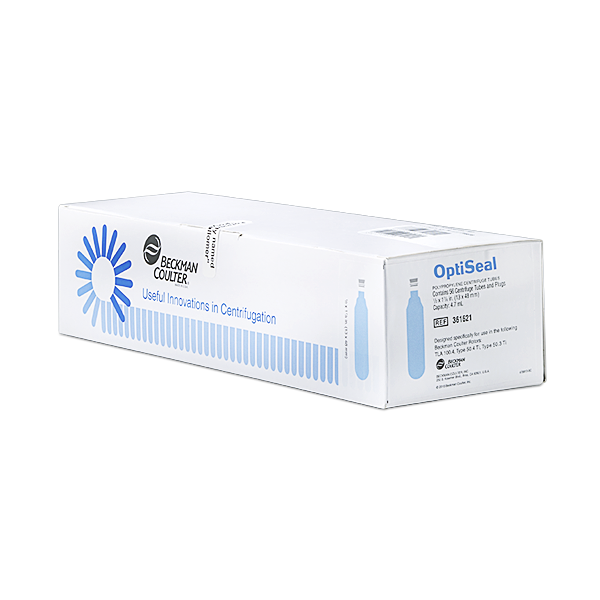

4.7 mL, OptiSeal Polypropylene Tube, 13 x 48mm - 56Pk
4.7 mL, OptiSeal™ Polypropylene Tube, 13 x 48mm - 56Pk
2 mL, Quick-Seal® g-max Polypropylene Tube, 13 x 25mm - 50Pk
2 mL, Quick-Seal® g-max Polypropylene Tube, 13 x 25mm - 50Pk
6 mL, Quick-Seal® Bell-Top Polypropylene Tube, 13 x 64mm - 50Pk
6 mL, Quick-Seal® Bell-Top Polypropylene Tube, 13 x 64mm - 50Pk
6 mL, Quick-Seal® Bell-Top Ultra-Clear Tube, 13 x 64mm - 50Pk
6 mL, Quick-Seal® Bell-Top Ultra-Clear Tube, 13 x 64mm - 50Pk
6.5 mL, Open-Top Thinwall Polypropylene Tube, 13 x 64mm - 50Pk
6.5 mL, Open-Top Thinwall Polypropylene Tube, 13 x 64mm - 50Pk
4 mL, Open-Top Thickwall Polypropylene Tube, 13 x 64mm - 25Pk
4 mL, Open-Top Thickwall Polypropylene Tube, 13 x 64mm - 25Pk

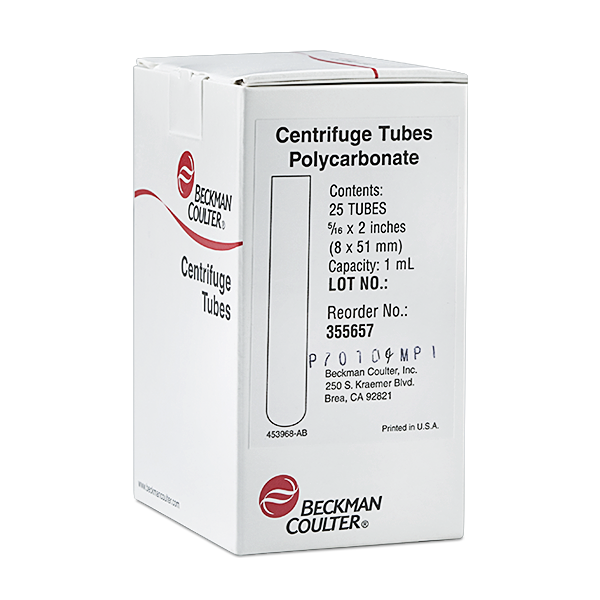

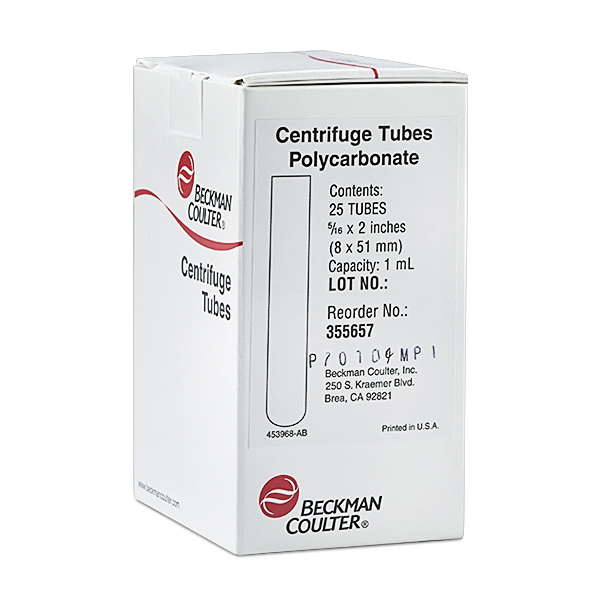

1 mL, Open-Top Thickwall Polycarbonate Tube, 8 x 51mm - 25Pk
1 mL, Open-Top Thickwall Polycarbonate Tube, 8 x 51mm - 25Pk
4 mL, Open-Top Thickwall Polycarbonate Tube, 13 x 64mm - 25Pk
4 mL, Open-Top Thickwall Polycarbonate Tube, 13 x 64mm - 25Pk

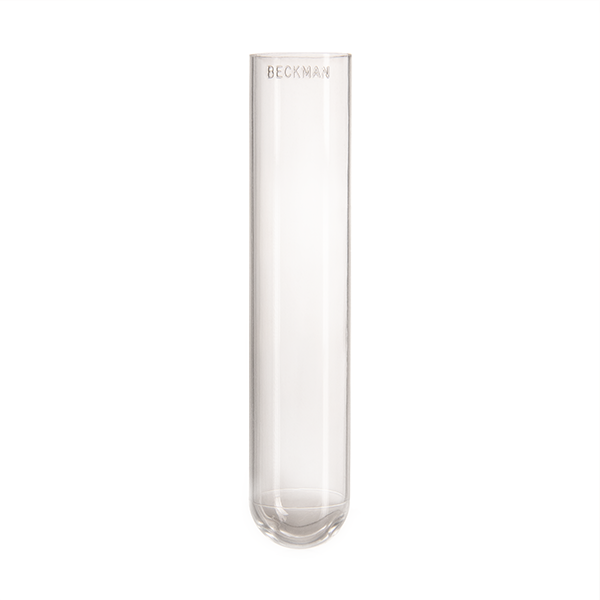

6.5 mL, Open-Top Thinwall Ultra-Clear Tube, 13 x 64mm - 50Pk
