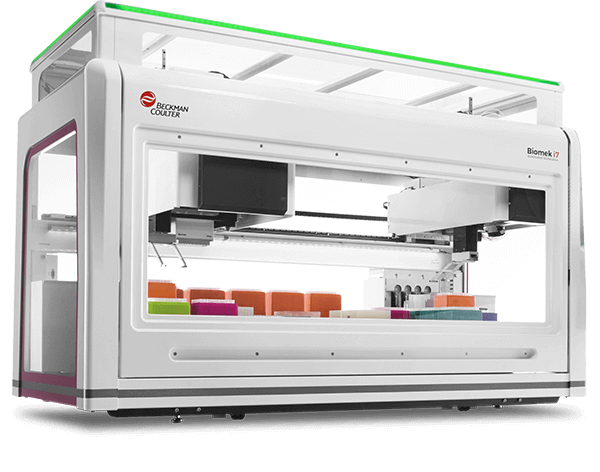

Automated Workstation Biomek i7

Der leistungsstärkste und umfangreichste Biomek auf dem Markt.

  • Hoher Durchsatz
  • 45 Deckpositionen
  • 0,5–5.000 μl Pipettiervolumenbereich
  • Einzel- oder Doppelköpfe

Explore Biomek i7 Models

Eigenschaften

Vielseitiger Arbeitsbereich

  • Geräumige, offene Plattform mit gitterbasiertem Deck
  • Bis zu 45 Deckpositionen
  • Internes LED-Licht
  • Automatisierte Labware-Positionierer (ALPs)
  • Optional eingehauste Gerätevarianten
  • On-Deck Integrationsmöglichkeiten von 4-Seiten
  • Konfigurierbar für spezifische Anwendungen

Flexibles Pipettieren & Workflow Management

  • Mehrere Einzel- und Doppelarm-Konfigurationen mit Mehrkanal-Pipettierköpfen (96/384 / Pin-Werkzeug) und / oder Span-8-Pipettieren möglich
  • Großvolumiger 1 ml Mehrkanal-Pipettierkopf
  • Optimaler Deckzugriff durch leichtversetzten, rotierende Greifer
  • Einmal- und feste Biomek-Pipettierspitzen, einschließlich Septum-Piercing
  • Transfervolumina von 0,5 bis 5.000 μl
  • Unabhängige Span-8-Sondenkalibrierung
  • Achtkanal-Flüssigkeitsfüllstandmessung
  • Unterstützt Labware aus Einzelprobengefäßen bis zu 1,536-Well-Mikroplatten
  • Vollständiges Intra-Well-Pipettieren

Einfache Systembedienung

  • Einfache Automatisierung bestehender Prozesse und Durchführung von schnellen Workflow-Änderungen
  • Intuitive, Icon-basierte Software mit Datenverfolgung und LIMS-Konnektivität
  • Zukunftssicher durch Windows 10 OS
  • Verlängern Sie Walk-Away Zeiten mit Prozessmanagement und Scheduling Software
  • Geführter System Set-Up
  • Automatisierte Deckgestaltung
  • Datengesteuerte Methoden wie Hit-Picking und Normalisierung
  • Lichtvorhang-Sicherheitsfunktion
  • Kontrollleuchten für den Instrumentenstatus
  • Eingebaute Kameras zur Live-Übertragungen und Videoaufzeichnungen bei Fehlern

Anwendungsorientierte Lösungen

  • Workflow-Analyse
  • Expertenanwendungen und technische Unterstützung
  • Umfangreiches Portfolio von bewährten automatisierten Biomek-Methoden für Genom-, Wirkstoff- und Grundlagenforschung

Spezifikationstabelle

Minimum Table Support Requirements 1xcm(0xin)
Pod and Tool Type 1μL - 300 μL 96-Channel Head; 5 μL -1200 μL 96-Channel head; 0.5 μL - 60 μL Multichannel-384 Head
Tip Type T30_384; T25F_384; T50_384; T40F_384; T80_384; T40F; T80_LLS; T40F_LSS; T90; T50F; T90_LSS; T50F_LLS; T230; T230_LSS; T190F_LLS; T230_WB; T1070; T1020_WB
Operating System Windows® 10
Software Biomek software, SAMI EX scheduling software, Biomek PowerPack software, Biomek Method Launcher, DART 2.0 software
Display 22" controller screen
Operating Modes Semi-automated, manual, controlled by operator
Item Specifications Referenced B87580

Content and Resources

Filter by:
Resource Type
Automating Cell Line Development This application note features automating cell line development with a Biomek i7 liquid handling workstation and integrated devices in order to overcome challenges for this workflow
Efficient Factorial Optimization of Transfection Conditions Design of Experiment (DOE) approach can be quickly automated on the Biomek i7 Automated Workstation to identify optimal transfection conditions for a variety
Cell Line Development – Limiting Dilution Limiting dilution is a traditional approach to achieve monoclonality
Cell Line Development – Hit Picking The basic concept of hit picking is simple – 1) identify hits based on assay data and 2) consolidate these hits into a new labware in an identifiable way
Cell Line Development – Selection and Enrichment The quest to find cells that stably express and secrete antibodies or other protein products from a transfected pool of cells requires the screening of thousands of wells/cells
