Sorting Rare E-SLAM Hematopoietic Stem Cells Using CytoFLEX SRT and Subsequent Culture

Objectives

  • Learn an analysis and sorting method for E-SLAM stem cells from adult mice
  • Learn considerations for rare cell sorting

Applications in stem cell biology are an active and growing portion of work performed on cell sorters. Typical applications working with stem cells can include but are not limited to cell-culture cleanup, single-cell deposition for cloning or genomics, and isolation of stem cells from blood, bone marrow, or other primary tissue samples.

In this application note, a method for separating long term hematopoietic stem cells (HSCs) from the bone marrow of adult mice is demonstrated. These cells have the ability to produce all the cells of the blood system as well as daughter HSCs through a process called self-renewal. The isolation procedure begins with setting regions on viable single cells using the cell surface marker strategy published to contain ~60% functional HSCs as measured by single cell transplantation - CD150+CD48- EPCR+CD45+SCA1+. 1;2)

Researchers are often concerned about damage to cells during the sorting process resulting in poor survival and/or expansion of cells in vitro. While in vitro assays cannot be used as proof retention of full stem cell function, they can be used to demonstrate production of multiple mature cell types from single cells. Moreover, these assays can provide examples of a rare stem cell being sorted at single-cell purity with defined functional readouts.

Research in cell biology applications beyond stem cell biology also often calls for sorting rare (<1%) populations from complex mixtures for a variety of experimental endpoints. These data also provide support to those with an interest in rare cell sorting that the CytoFLEX SRT cell sorter had the capability to distinguish these cells and capture them with high purity.

SLAM markers and the more specific E-SLAM set of markers can allow for the isolation of highly enriched hematopoietic stem cell (HSC) populations 1; 2. A sort of this complexity highlights several performance attributes of a cell sorter. First, the sorter requires a high level of optical sensitivity to allow for fine discrimination of cell populations. Along with this sensitivity, there is a need to reduce the spread of populations due to inaccurate photon counting by detectors. The rare nature of these cells in the initial cell suspension (approximately 0.004%) makes every cell valuable, so every well an investigator would like to culture a colony from needs to receive a cell capable of cell division 3;4.

The data presented here are intended to allow others to replicate this work, as well as provide example data showing rare cell sorting and culture growth following sorting.

Experimental Overview

Cell isolation and staining followed the procedures established in the following publications:

Prospective isolation and molecular characterization of hematopoietic stem cells with durable self-renewal potential.2

Combined Single-Cell Functional and Gene Expression Analysis Resolves Heterogeneity within Stem Cell Populations.1

In brief, mice were sacrificed, and bone marrow cells were isolated from the tibia, femur and sternum of both hind legs, by crushing bones in PBS (Sigma) supplemented with 2% Fetal Calf Serum (FCS (Sigma) or STEMCELL Technologies (SCT)). Samples were filtered through 20μm sterile filters before further processing. Red cell lysis was performed using ammonium chloride (NH4Cl, SCT) and HSPC were enriched by magnet separation using EasySep Mouse Hematopoietic Progenitor Cell Enrichment Kit (SCT). E-SLAM Sca-1+ cells were isolated by fluorescence-activated cell sorting (FACS) as previously described (Kent et al., 2009) using CD45 BV421 (Clone 30-F11, Biolegend), CD150 PE/ Cy7 (Clone TC15-12F12.2, Biolegend), CD48 APC (Clone HM48-1, Biolegend), Sca-1 BV605 (Clone D7, Biolegend), EPCR PE (Clone RMEPCR1560, SCT) and 7-Aminoactinomycin D (7AAD) (Life Technologies).

All cell sorting was performed using a CytoFLEX SRT cell sorter following Beckman Coulter recommendations for setup, quality control, and compensation. Deflected plate sorting was used to place cells individually into the wells of round-bottom 96-well plates, each well having been preloaded with 100 to 200 μL serum-free medium (SFM; Iscove’s Modified Dulbecco’s Medium supplemented with 10 mg/mL bovine serum albumin, 10 μg/mL insulin, and 200 μg/ml transferrin, 100 U/mL penicillin, 100 μg/mL streptomycin [all from StemCell Technologies], and 10−4 M β-mercaptoethanol [Sigma-Aldrich]). Each well was then visually inspected to identify those that contained one and only one viable cell.

CytoFLEX SRT sorting plot

Figure 1. Sort set up

Results

Initial microscopic analysis indicated that all wells received one viable single cell following the sort. Cell were then cultured for a period of 10 days and wells were assayed microscopically to ascertain if these sorted cells were capable of forming colonies (as performed previously in:3;4). This is one way to identify stem cells which are both highly proliferative and retain the phenotypic markers of undifferentiated cells.

An example of a colony growing in a well can be seen in Figure 2.

CytoFLEX SRT Cell Growth Video
0:19

Figure 2.

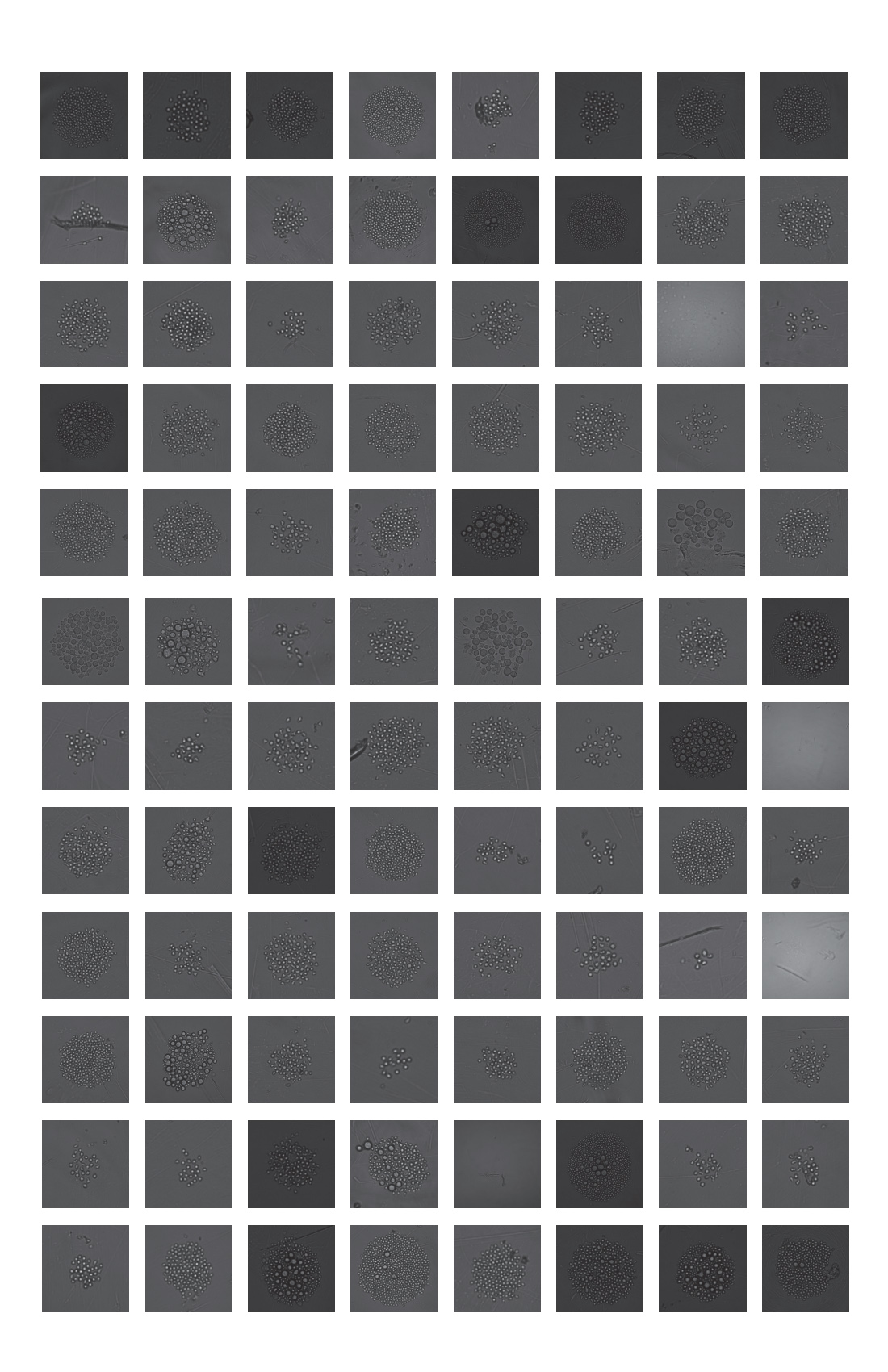

Checking all wells of the plate indicated that of the 96 wells deposited, 92 wells grew colonies of varying sizes for an overall plate efficiency of post-sort growth of 95.8%. A collection of these cell growth images can be seen in figure 3.

CytoFLEX SRT Cell Growth

These data support that the CytoFLEX SRT is capable of sorting rare events from a complex sample, highlighting detection capabilities in multicolor experiments, as well as sorting these events. Furthermore, the data shows that these rare cells were capable of division in culture after single-cell deposition, showing high cell survival and colony outgrowth for these rare hematopoietic stem cells.

Tips for success when sorting rare cells

  • Not all cells perform well when solitary in a plate. Investigate the use of conditioned media or feeder cells.
  • While faster sort times are often more desirable when sorting rare cells, aborted events can result in not enough material for downstream experiments. Enrichment prior to sorting or lower event rates can mitigate abort rates.
  • Population spreading as seen with compensated multicolor samples can be mitigated by careful selection of fluorescent dyes. Note that the researcher in this paper selected dyes with minimal overlap by taking advantage of multiple laser lines and wide differences in fluorescent emission.

Beckman Coulter Life Sciences would like to thank Karen Hogg at the Bioscience Technology Facility at the University of York, York, England and the laboratory of David G. Kent at the University of York for their assistance, access to samples and reagents that allowed for the completion of this work.

Bibliography

  • Wilson, N. K. et al. Combined Single-Cell Functional and Gene Expression Analysis Resolves Heterogeneity within Stem Cell Populations. Cell Stem Cell 16, 712–724 (2015).
  • Kent, D. G. et al. Prospective isolation and molecular characterization of hematopoietic stem cells with durable self-renewal potential. Blood 113, 6342–6350 (2009).
  • Kent, D. G. et al. Self-renewal of single mouse hematopoietic stem cells is reduced by JAK2V617F without compromising progenitor cell expansion. PLoS Biol. 11, e1001576 (2013).
  • Kent, D. G., Dykstra, B. J., Cheyne, J., Ma, E. & Eaves, C. J. Steel factor coordinately regulates the molecular signature and biologic function of hematopoietic stem cells. Blood 112, 560–567 (2008).
