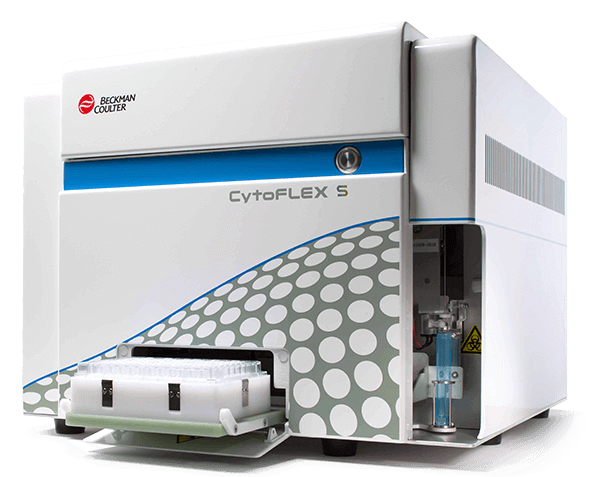

CytoFLEX S V4-B2-Y4-R3 Flow Cytometer (13 Detectors, 4 Lasers)
Product No:B75408
CytoFLEX S V4-B2-Y4-R3 Flow Cytometer has 4 active lasers (405 nm, 488 nm, 561 nm, 638 nm) and 13 channels for fluorescence detection. This instrument can be upgraded with a maximum of 4 Violet, 2 Blue, 4 Yellow Green, and 3 Red channels. It includes 13 repositionable bandpass filters, 450/45, 525/40 (2), 585/42, 610/20 (2), 660/10 (2), 690/50 (2), 712/25, 780/60 (2). The complete system is supplied with computer work station with CytExpert Acquisition software, sheath and waste containers with harness.
Resources + Tools
Spezifikationen
| Regulatory Status | RUO |
| Optical Filters | 450/45, 525/40 (2), 585/42, 610/20 (2), 660/10 (2), 690/50 (2), 712/25, 780/60 (2) |
| Detectors | Photodiodes |
| Signal Processing | Digital system with 7-decade display |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Weight | | |
| Width | | |
| Depth | | |
| Height | | |
Related Products or Parts
A01-1-0048, 405/10 Bandpass Filter
405/10 nm Bandpass Filter mounted for use in the CytoFLEX, CytoFLEX S, and CytoFLEX LX Wavelength Division Multiplexer (WDM). The 405/10 nm Bandpass Filter is supplied within the Violet WDMs of all models. This filter is used for detecting side scatter from the violet laser.
A01-1-0049, 450/45 nm Bandpass Filter
450/45 nm Bandpass Filter mounted for use in the CytoFLEX, CytoFLEX S, and CytoFLEX LX Wavelength Division Multiplexer (WDM). The filter holder allows the bandpass to be repositioned to meet experimental requirements. The 450/45 nm Bandpass Filter is supplied as a standard filter in all models of the CytoFLEX Platform. This filter is useful for detecting BD Horizon V450, Brilliant Violet 421, DAPI, eFluor 450 and Pacific Blue.
A01-1-0050, 488/8 Bandpass Filter
488/8 nm Bandpass Filter mounted for use in the CytoFLEX, CytoFLEX S, and CytoFLEX LX Wavelength Division Multiplexer (WDM). The 488/8 nm Bandpass Filter is supplied within the Blue WDMs of all models. This filter is used for detecting side scatter from the blue laser.
A01-1-0051, 525/40 nm Bandpass Filter
525/40 nm Bandpass Filter mounted for use in the CytoFLEX, CytoFLEX S, and CytoFLEX LX Wavelength Division Multiplexer (WDM). The filter holder allows the bandpass to be repositioned to meet experimental requirements. The 525/40 nm Bandpass Filter is supplied as a standard filter in all models of the CytoFLEX Platform. This filter is useful for detecting Alexa Fluor 488, AmCyan, BD Horizon BUV496, BD Horizon V500, Brilliant Violet 510, CFSE, FITC, Fluo-3, Krome Orange.
A01-1-0052, 585/42 nm Bandpass Filter
585/42 nm Bandpass Filter mounted for use in the CytoFLEX, CytoFLEX S, and CytoFLEX LX Wavelength Division Multiplexer (WDM). The filter holder allows the bandpass to be repositioned to meet experimental requirements. The 585/42 nm Bandpass Filter is supplied as a standard filter in all models of the CytoFLEX Platform. This filter is useful for detecting DsRed, Phycoerythrin (PE) and Propidium iodide (PI).
A01-1-0053, 610/20 nm Bandpass Filter
610/20 nm Bandpass Filter mounted for use in the CytoFLEX, CytoFLEX S, and CytoFLEX LX Wavelength Division Multiplexer (WDM). The filter holder allows the bandpass to be repositioned to meet experimental requirements. The 610/20 nm Bandpass Filter is supplied as a standard filter in all models of the CytoFLEX Platform. This filter is useful for detecting Brilliant Violet 605, PE-CF594, PE-Texas Red, Propidium iodide (PI) and Qdot 605.
A01-1-0054, 638/6 Bandpass Filter
638/6 nm Bandpass Filter mounted for use in the CytoFLEX, CytoFLEX S, and CytoFLEX LX Wavelength Division Multiplexer (WDM). The 638/6 nm Bandpass Filter is supplied within the Red WDMs of all models. This filter is used for detecting scatter and autofluorescence from the red laser.
A01-1-0055, 660/10 Bandpass Filter
660/10 nm Bandpass Filter mounted for use in the CytoFLEX, CytoFLEX S, and CytoFLEX LX Wavelength Division Multiplexer (WDM). The filter holder allows the bandpass to be repositioned to meet experimental requirements. The 660/10 nm Bandpass Filter is supplied as a standard filter in all models of the CytoFLEX Platform. This filter is useful for detecting Alexa Fluor 647, Allophycocyanin (APC), Brilliant Violet 650, Cy5, eFluor 660 and Qdot 655.
A01-1-0056, 690/50 Bandpass Filter
690/50 nm Bandpass Filter mounted for use in the CytoFLEX, CytoFLEX S, and CytoFLEX LX Wavelength Division Multiplexer (WDM). The filter holder allows the bandpass to be repositioned to meet experimental requirements. The 690/50 nm Bandpass Filter is supplied as a standard filter in Blue WDM of the CytoFLEX and CytoFLEX S models CytoFLEX configurations. This filter is useful for detecting DRAQ7, PE/Cy5, PE/Cy5.5, PerCP, PerCP-Cy5.5 and Propidium iodide (PI).
A01-1-0057, 712/25 nm Bandpass Filter
712/25 nm Bandpass Filter mounted for use in the CytoFLEX, CytoFLEX S, and CytoFLEX LX Wavelength Division Multiplexer (WDM). The filter holder allows the bandpass to be repositioned to meet experimental requirements. The 712/25 nm Bandpass Filter is supplied as a standard filter in Red WDMs of all models CytoFLEX configurations. This filter is useful for detecting Alexa Fluor 700-allophycocyanin (APC), Alexa Fluor 700, Cy5.5 and DRAQ7.
A01-1-0058, 780/60 nm Bandpass Filter
780/60 nm Bandpass Filter mounted for use in the CytoFLEX, CytoFLEX S, and CytoFLEX LX Wavelength Division Multiplexer (WDM). The filter holder allows the bandpass to be repositioned to meet experimental requirements. The 780/60 nm Bandpass Filter is supplied as a standard filter in models that don't contain an IR WDM CytoFLEX configurations. This filter is useful for detecting Alexa Fluor 750-allophycocyanin (APC), APC- eFluor™ 780, APC-Cy7, APC-H7, Brilliant Violet 785, DRAQ7, PE/Cy7 and Qdot 800.
B51503, CytoFLEX Sheath Fluid, 1 x 10 L
A nonionic, non-fluorescent, and azide-free sheath fluid for use on CytoFLEX flow cytometers.
B55031, CytoFLEX Reagents Starter Kit
CytoFLEX Startup Reagents and Accessories for systems without the IR Laser. Includes Daily QC Fluorospheres, Sheath fluid, FlowClean, Contrad 70 concentrate and sample tubes.
