Airfuge
Die luftbetriebene Tisch-Ultrazentrifuge
Die einzigartige Airfuge ist eine kostengünstige Alternative zu den vorhandenen Tisch-Ultrazentrifugen bei Verwendung von sehr kleinen Volumina und Drehzahlen von bis zu 110.000 min-1. Mit einer Breite von nur 28 cm ist diese luftbetriebene Ultrazentrifuge ideal für jedes Labor geeignet.
Mit einer Vielzahl von Festwinkelrotoren, aber auch mit Spezialrotoren wie z.B. dem Rotor für die Elektronenmikroskopie oder dem Chylomikronen-Rotor können diverse Applikationen bedient werden
Entsprechende Labware aus verschiedenen Materialien (Polypropylen, Polyethylen, Ultra-Clear) steht für die Rotoren zur Verfügung.
Resources + Tools
Eigenschaften
Wichtigste Geräteparameter
- Max. Drehzahl: 110.000 min-1
- Max. Schwerefeld: 199.000 x g
- Probenvolumina von 6 x175 µl bis 4 x 450 µl
- Luftturbinenantrieb
- Entsprechend DIN EN 61010 - 2 - 020
Rotoren
- Vier verschiedene Festwinkelrotoren für unterschiedliche Volumina (1050 µl-1800 µl)
- Chylomikronen-Rotor zur Klärung von lipämischen Seren
- Batch-Rotor für größere Volumina
- Spezialrotor für die Rasterelektronenmikroskopie
Explore Airfuge Air-Driven Models
Related parts for Airfuge (220V 50Hz)

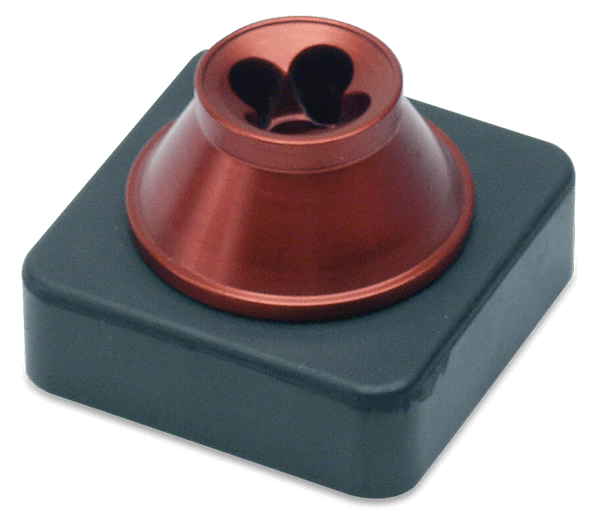

A-110 Fixed-Angle Rotor, 6 x 180 µL, 110,000 rpm, 199,000 x g
A-110 Rotor, Fixed-Angle Rotor, Angle, Aluminum, Red, Major applications: Fast pelleting of very small samples. For use in Airfuge; Air-Driven Micro-Ultracentrifuge.
A-100/18 Fixed-Angle Rotor, 6 x 175 µL, 95,000 rpm, 149,000 x g
A-100/18 Rotor, Fixed-Angle, Aluminum, Anodized Silver, Major applications: Fast pelleting of very small samples. For use in Airfuge; Air-Driven Micro-Ultracentrifuges.
A-95 Fixed-Angle Rotor, 4 x 450 µL, 95,000 rpm, 178,000 x g
A-95 Rotor, Fixed-Angle, 30 angle, Aluminum, Anodized Black, Major applications: Fast pelleting of very small samples. For use in Airfuge; Air-Driven Micro-Ultracentrifuges.
A-100/30 Fixed-Angle Rotor, 6 x 240 µL, 92,000 rpm, 167,000 x g
A-100/30 Rotor, Fixed-Angle, Angle, Aluminum, Blue, Major applications: Fast pelleting of very small samples. For use in Airfuge® Air-Driven Micro-Ultracentrifuges.
ACR-90 Chylomicron Rotor, 3.5 mL, 90,000 rpm, 122,000 x g
ACR-90 Chylomicron Rotor, Aluminum, Anodized Silver; Major applications: Rapid clarification of lipemic blood samples. For use in Airfuge; Air-Driven Micro-Ultracentrifuges. Consists of a Supporting Base, a Disposable Polyethylene Liner, Stainless Steel Lid, Adapters for 2.4 mL Liners; and Rotor Stand/Vise.
Aluminum Batch Rotor 7 mL, 90,000 rpm, 132,000 x g
Batch Rotor; Aluminum, Silver; Major applications: Rapid processing of fruit paste. For use in Airfuge; Air-Driven Micro-Ultracentrifuges. Batch rotor, aluminum, for 2 mL to 7 mL volumes. Sample is placed in the rotor body istelf or in one of two types of polyethylene liners. A plastic window disk is placed between the rotor and the lid to contain samples during centrifugation. Includes Rotor Stand/Vise, O-Ring, and Bushing.
EM-90 Electron Microscopy Rotor 600 µL, 90,000 rpm, 118,000 x g
EM-90 Electron Microscopy Particle Counting Rotor, Silver Major applications: Sedimenting particles onto filter membranes, glass cover slides, and micropscope grids. For use in Airfuge; Air-Driven Micro-Ultracentrifuges. Includes: 5 mm Sector Core with 600; L capacity (100L per cell) (Part Number 347836), 3 mm Sector Core with 360; L capacity (60; L per cell) (Part Number 347838) Rotor Stand/Vise (Part Number 341252) Rotor Gaskets (Part Number 347840) Sector Core Removal Bolt Template; O-Ring (Part Number 853156) Bushing (Part Number 343197)
Spezifikationstabelle
| BioSafe | No |
| Acceleration | 30-60 seconds |
| Deceleration | 2.5-5.5 minutes |
| Timed Run | Up to 5 hrs (5 min increments) or Continuous hold |
| Max Capacity Volume Range | - 7 mL |
| Item Specifications Referenced | 340401 |
