Optima MAX-TL
Die Tisch-Ultrazentrifuge
Die Optima MAX-Serie ist für Kunden mit kleinen Volumina bei großen Drehzahlen eine ideale Alternative zu den präparativen Ultrazentrifugen. So bietet die Optima MAX-TL mit Geschwindigkeiten von bis zu 120.000 min-1 eine perfekte Lösung für Standardanwendungen. Für die Optima MAX-TL stehen diverse Arten von Rotoren für diverse
Applikationen zur Verfügung.
Die Steuerung erfolgt dabei über ein angenehm großes Farb-LCD-Display.
Resources + Tools
Eigenschaften
Wichtigste Geräteparameter
- Max. Drehzahl: 120.000 min-1
- Max. Schwerefeld: 657.000 x g
- Probenvolumina ab 175 µl bis über 40 ml
- Lautstärke kleiner 47 dBA
- kühlmittelfreies Kühlsystem für Temperaturen von 0 °C – 40°C
- Für die Optima MAX-TL steht eine große Vielfalt von Rotoren zur Verfügung, von Ausschwingrotoren, Festwinkelrotoren und Vertikalrotoren zur Verfügung.
„Biosafe“-Konzept für optimale biologische Sicherheit
- unser Biosafe-Konzept umfasst in der Gesamtheit die 3 Ebenen für die biologische Sicherheit : die Zentrifuge – die Rotoren – die Labware
- Rotoren besitzen spezielle Verschlußsysteme (z.B. Dual-Locking Lid)
- Spezielle für Biosafe entwickelte Labware, wie Aerosol-Kannister oder Deckel
- Verwendung von integrierten Steril-Filtern in Zentrifugen
- Mit diesem Biosafe-Konzept bietet Beckman Coulter dem Zentrifugenanwender eine maximale Sicherheit im Umgang mit gefährlichen Substanzen bei der Zentrifugation. Entsprechend der DIN EN 61010-2-020 sind alle mit dem Prädikat „ Biosafety“ versehenen Produkte durch eine externe Agentur geprüft worden.
Wichtige Applikationen für die Optima™ MAX-TL
- Proteine und Lipoproteine: Pelletierung, Aufreinigung, Dichtegradiententrennung oder PEG-Fällungen
- Virus: Pelletierung, Dichtegradiententrennung oder PEG-Fällungen
- Nukleinsäuren: Pelletierung von OH-Fällungen
- Nanopartikel: Pelletierung oder Dichtegradientenzentrifugation von einzelnen Fraktionen, wie z.B. Goldpartikel, Proteinen, CNT’s u.ä.
- Für weitere spezielle applikative Fragen stehen Ihnen unsere Mitarbeiter weiterführend mit Informationen gerne zur Verfügung.
Explore Optima MAX-TL Models
Related Parts for Optima MAX-TL

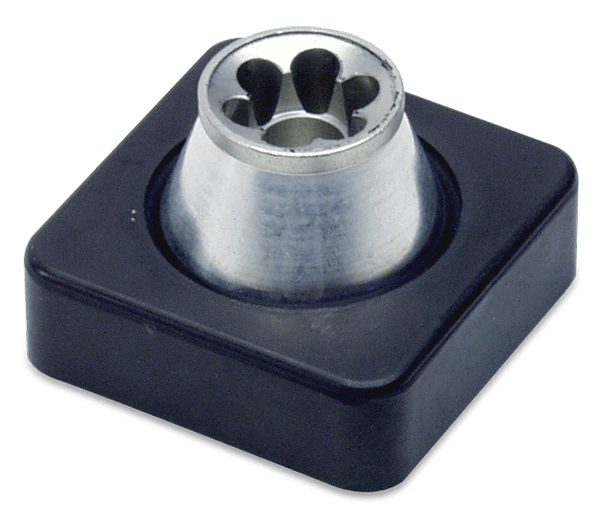

A-100/18 Fixed-Angle Rotor, 6 x 175 µL, 95,000 rpm, 149,000 x g
A-100/18 Rotor, Fixed-Angle, Aluminum, Anodized Silver, Major applications: Fast pelleting of very small samples. For use in Airfuge; Air-Driven Micro-Ultracentrifuges.

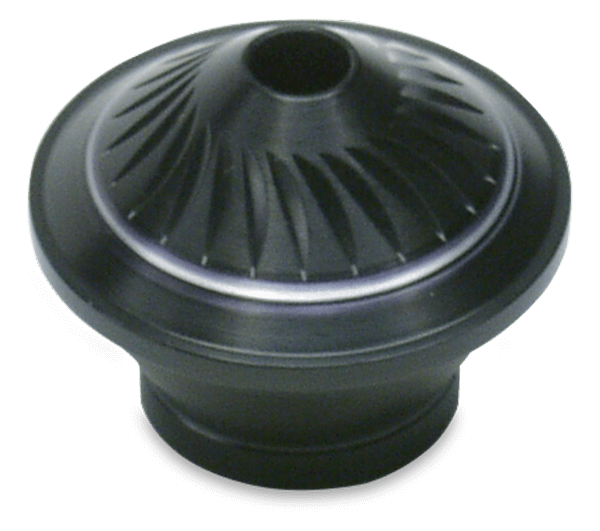

A-95 Fixed-Angle Rotor, 4 x 450 µL, 95,000 rpm, 178,000 x g
A-95 Rotor, Fixed-Angle, 30 angle, Aluminum, Anodized Black, Major applications: Fast pelleting of very small samples. For use in Airfuge; Air-Driven Micro-Ultracentrifuges.

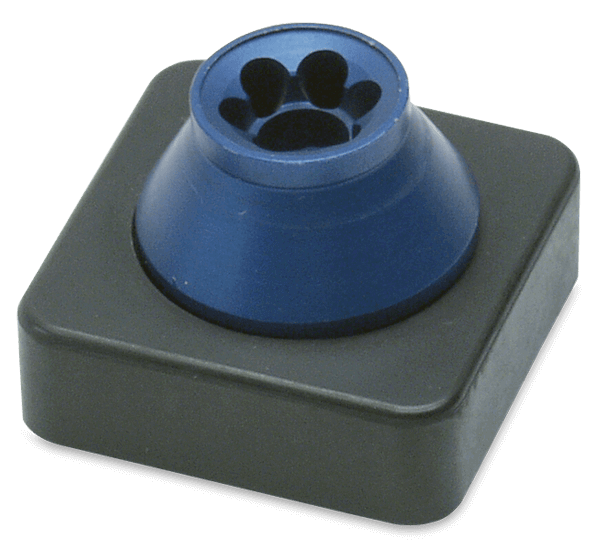

A-100/30 Fixed-Angle Rotor, 6 x 240 µL, 92,000 rpm, 167,000 x g
A-100/30 Rotor, Fixed-Angle, Angle, Aluminum, Blue, Major applications: Fast pelleting of very small samples. For use in Airfuge® Air-Driven Micro-Ultracentrifuges.

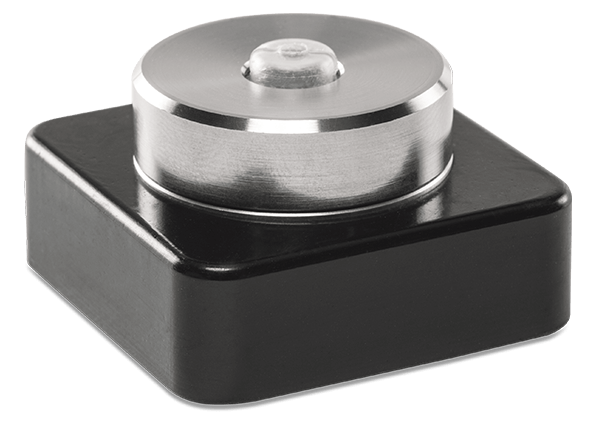

ACR-90 Chylomicron Rotor, 3.5 mL, 90,000 rpm, 122,000 x g
ACR-90 Chylomicron Rotor, Aluminum, Anodized Silver; Major applications: Rapid clarification of lipemic blood samples. For use in Airfuge; Air-Driven Micro-Ultracentrifuges. Consists of a Supporting Base, a Disposable Polyethylene Liner, Stainless Steel Lid, Adapters for 2.4 mL Liners; and Rotor Stand/Vise.

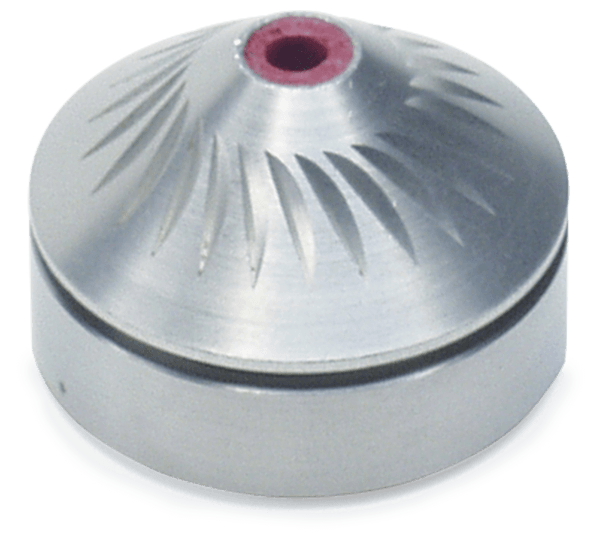

Aluminum Batch Rotor 7 mL, 90,000 rpm, 132,000 x g
Batch Rotor; Aluminum, Silver; Major applications: Rapid processing of fruit paste. For use in Airfuge; Air-Driven Micro-Ultracentrifuges. Batch rotor, aluminum, for 2 mL to 7 mL volumes. Sample is placed in the rotor body istelf or in one of two types of polyethylene liners. A plastic window disk is placed between the rotor and the lid to contain samples during centrifugation. Includes Rotor Stand/Vise, O-Ring, and Bushing.
EM-90 Electron Microscopy Rotor 600 µL, 90,000 rpm, 118,000 x g
EM-90 Electron Microscopy Particle Counting Rotor, Silver Major applications: Sedimenting particles onto filter membranes, glass cover slides, and micropscope grids. For use in Airfuge; Air-Driven Micro-Ultracentrifuges. Includes: 5 mm Sector Core with 600; L capacity (100L per cell) (Part Number 347836), 3 mm Sector Core with 360; L capacity (60; L per cell) (Part Number 347838) Rotor Stand/Vise (Part Number 341252) Rotor Gaskets (Part Number 347840) Sector Core Removal Bolt Template; O-Ring (Part Number 853156) Bushing (Part Number 343197)
TLA-100 Fixed-Angle Rotor Package
TLA-100 Rotor Package, Fixed-Angle (30 deg Angle), Titanium. Major applications: Pelleting of subcellular fractions; proteins; RNA. Note: Non-precipitating solutions up to 1.7 g/mL in density can be run in this rotor without a reduction in rotor speed. For use in the Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, and Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and; Optima TL micro-ultracentrifuges.
TLA-100 Fixed-Angle Rotor
TLA-100 Rotor Assembly, Fixed-Angle (30 deg Angle), Titanium. Major Applications: Pelleting of subcellular fractions; proteins; RNA. Note: Non-precipitating solutions up to 1.7 g/mL in density can be run in this rotor without a reduction in rotor speed. For use in the Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, and Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and; Optima™ TL micro-ultracentrifuges.
TLA-100.3 Fixed-Angle Rotor Package
TLA-100.3 Rotor Package, Fixed Angle Rotor (30 deg Angle), Titanium. Major Applications: Pelleting of subcellular fractions in 5-30 minutes; pelleting RNA in 1-2 hours; plasmid DNA separation in 6 hours. Note: Non-precipitating solutions up to 1.7 g/mL in density can be run in this rotor without a reduction in rotor speed. For use in the Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, and Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL micro-ultracentrifuges.
TLA-100.3 Fixed-Angle Rotor
TLA-100.3 Fixed Angle Rotor Assembly, Fixed-Angle Rotor (30 deg Angle), Titanium. Major Applications: Pelleting of subcellular fractions in 5-30 minutes; pelleting RNA in 1-2 hours; plasmid DNA separation in 6 hours. Note: Non-precipitating solutions up to 1.7 g/mL in density can be run in this rotor without a reduction in rotor speed. For use in the Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, and Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL micro-ultracentrifuges.
TLA-110 Fixed-Angle Rotor, 110.000 rpm, 657.000 x g, 8 x 5.1 mL
TLA-110 Rotor Package, Fixed Angle Rotor (28 deg Angle), Titanium.
Major applications: Moderate volume differential sedimentation (pelleting) of subcellular organelles and viruses.
For use in the Optima™ MAX-XP Benchtop Ultracentrifuge, Optima™ TLX personal micro-ultracentrifuges, and Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL micro-ultracentrifuges.
Note: May also be used in TL-100 with service installed spindle upgrade Part Number 360477.
TLA-120.1 Fixed-Angle Rotor Package
Major applications: Pelleting of subcellular fractions in 5-30 minutes; plasmid DNA separation in 3 hours. For use in the Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL personal micro-ultracentrifuges.
TLA-120.1 Fixed-Angle Rotor
TLA-120.1 Rotor Assembly, Fixed-Angle Rotor, Titanium. Major applications: Pelleting of subcellularfractions in 5-30 minutes; plasmid DNA separation in 3 hours. For use in the Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL personal micro-ultracentrifuges.
TLA-120.1 Fixed-Angle Rotor
TLA-120.1 Rotor Assembly, Fixed-Angle Rotor, Titanium. Major applications: Pelleting of subcellularfractions in 5-30 minutes; plasmid DNA separation in 3 hours. For use in the Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL personal micro-ultracentrifuges.
TLA-120.2 Fixed-Angle Rotor Package
TLA-120.2 Rotor Package, Fixed-Angle, Titanium. Major Applications: Pelleting of subcellular fractions in 5-30 minutes, plasmid DNA separations in 3 hours. Note: Non-precipitating solutions up to 1.7 g/mL in density can be run in this rotor without a reduction in rotor speed. For use in Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL-100 personal micro-ultracentrifuges.
TLA-120.2 Fixed-Angle Rotor Package
TLA-120.2 Rotor Package, Fixed-Angle, Titanium. Major Applications: Pelleting of subcellular fractions in 5-30 minutes, plasmid DNA separations in 3 hours. Note: Non-precipitating solutions up to 1.7 g/mL in density can be run in this rotor without a reduction in rotor speed. For use in Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL-100 personal micro-ultracentrifuges.
